802.3bt PoE Injector Supplier: How to Select Rugged Midspans for Outdoor Edge-AI Cameras
Table of contents
Why Edge-AI Cameras Need 802.3bt PoE Injectors in Outdoor Deployments
As AI-powered cameras move to the edge—monitoring traffic intersections, securing perimeters, or detecting anomalies in real time—the demand for higher power and outdoor-ready infrastructure grows. These devices often require 25–90 W or more, exceeding the limits of older 802.3af/at PoE standards. That’s where 802.3bt midspans (PoE injectors) come in.
802.3bt Type 3 (up to 60 W) and Type 4 (up to 100 W) midspans allow standard Ethernet cabling to deliver both data and high-wattage power to devices like:
- Edge-AI surveillance cameras
- Multi-sensor LPR (License Plate Recognition) systems
- Edge inference modules with GPUs or ASICs
These injectors are often used where switching infrastructure doesn’t support PoE natively or where power needs to be added in-line—especially for retrofits or remote deployments.
Top Features
- Supports 802.3bt Type 3 (60 W) or Type 4 (100 W) output
- Backward compatible with PoE/PoE+ (af/at) devices
- Full power on all 4 pairs (4PPoE) with auto-class detection
Top Benefits
- Delivers sufficient power for smart edge devices without rewiring
- Simplifies installation for pole, wall, or junction-mount cameras
- Ensures stable, low-noise power over long cable runs
Best Practices
- Confirm PoE class compatibility with AI camera specs
- Use shielded cabling to reduce EMI in outdoor environments
- Select midspans with built-in surge and lightning protection
802.3bt injectors are now foundational for deploying outdoor edge-AI infrastructure that’s both scalable and field-serviceable.
What Makes a PoE Injector “Rugged” Enough for Outdoor AI Applications?
Rugged midspans must withstand extreme temperatures, electrical surges, and harsh physical environments—all while providing uninterrupted power to mission-critical AI endpoints. These injectors are typically installed in poles, junction boxes, rooftops, or enclosures that lack environmental shielding.
Key ruggedization features include:
- IP65 or IP67 weatherproof housing
- Industrial-grade temperature ratings (-40°C to +75°C)
- Integrated surge protection (6 kV or higher)
Also critical is passive thermal dissipation. Outdoor injectors may be exposed to direct sunlight and must maintain stability without active fans. A well-designed rugged injector ensures no shutdowns or performance drops under sustained load or inclement conditions.
Top Features
- Die-cast aluminum or polycarbonate enclosures
- Integrated DIN-rail or pole-mount options
- Lightning and EFT protection on data and power lines
Top Benefits
- Withstands environmental abuse without failure
- Reduces maintenance cycles and truck rolls
- Ensures power reliability for security-critical AI cameras
Best Practices
- Select models tested to IEC 60068 and UL 60950 standards
- Avoid fan-based cooling in sealed environments
- Pair with surge-protected PoE splitters for high-power endpoints
In outdoor edge-AI deployments, ruggedization is not optional—it’s the price of reliability.
How to Match PoE Injector Wattage to AI Camera Power Requirements
Edge-AI cameras vary widely in power demand. Basic IP cameras may require 15 W (802.3af), while AI-enabled 4K cameras with thermal sensors and LPR modules can demand 60–90 W continuously. Choosing the right injector means understanding:
- PoE Class (0–8)
- 802.3bt Type (Type 3 vs. Type 4)
- Peak vs. sustained load profiles
For example:
- A 4K dome with onboard edge inference may need 30–40 W (Class 5 or 6)
- A multisensor panoramic unit could exceed 60 W (Class 7 or 8)
Selecting an injector rated below these levels can cause boot failures, video glitches, or system resets under load.
Top Features
- Auto-sensing Class detection
- Per-port power monitoring via LED or SNMP
- Max output per port clearly rated (e.g., 90 W at 55 V)
Top Benefits
- Prevents underpowering during peak AI processing
- Ensures future compatibility with new edge devices
- Simplifies installation with plug-and-play detection
Best Practices
- Review camera datasheets for peak power draw under AI mode
- Include 20% headroom in power budgets for thermal overhead
- Match injector output voltage (typically 54–57 V) with camera spec
The right match ensures that your AI camera doesn’t just boot—but performs consistently in the field.
CLIENT'S QUOTE
"Phihong’s PoE solutions have made a huge difference for us! Our network runs more efficiently, and we’ve seen real cost savings. We couldn’t be happier!"
What Surge and EMI Protections Should Outdoor Midspans Include?
Outdoor PoE systems are vulnerable to voltage spikes, ESD, and lightning-induced surges, especially when mounted on metal poles or near HVAC systems. A rugged PoE injector must include built-in protections to prevent equipment damage, data corruption, or service interruption.
Typical protections include:
- 6 kV common-mode surge suppression (IEC 61000-4-5)
- ESD protection on Ethernet and power pins (IEC 61000-4-2)
- Differential-mode EMI filtering and ferrite chokes
These protections ensure safety not only for the injector but also for downstream devices—especially expensive edge-AI hardware.
Top Features
- TVS diodes and common-mode chokes on input/output
- Isolated DC/DC design to break ground loops
- Shielded RJ45 connectors with drain wire tabs
Top Benefits
- Prevents PoE damage during storms or electrical faults
- Extends injector and camera lifespan
- Enables safer operation near HVAC, elevators, and outdoor lighting
Best Practices
- Use surge-rated cabling (Cat6a S/FTP) for exposed runs
- Ground injector chassis per NEC or IEC requirements
- Avoid sharing grounding with high-current AC equipment
Failing to integrate proper surge protection can turn a $200 camera into a maintenance ticket. Rugged midspans protect more than power—they protect investments.
Where Should 802.3bt Midspans Be Installed in AI Camera Networks?
Midspans are ideal for deployments where power sourcing must be injected after the network switch, such as:
- Switches without native PoE support
- Long cable runs beyond PoE switch power limits
- Junction boxes or enclosures where power is tapped locally
Typical placement options:

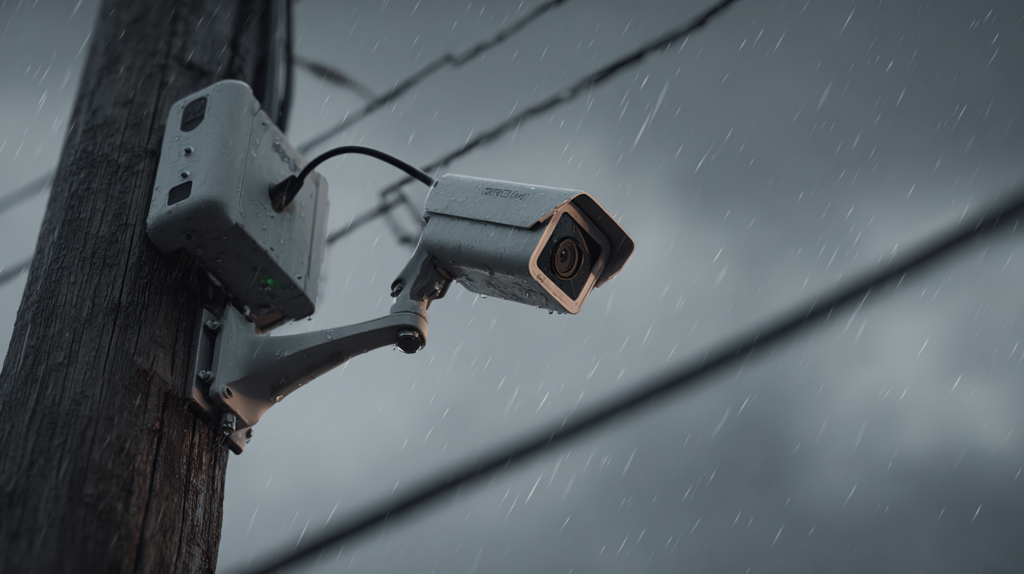

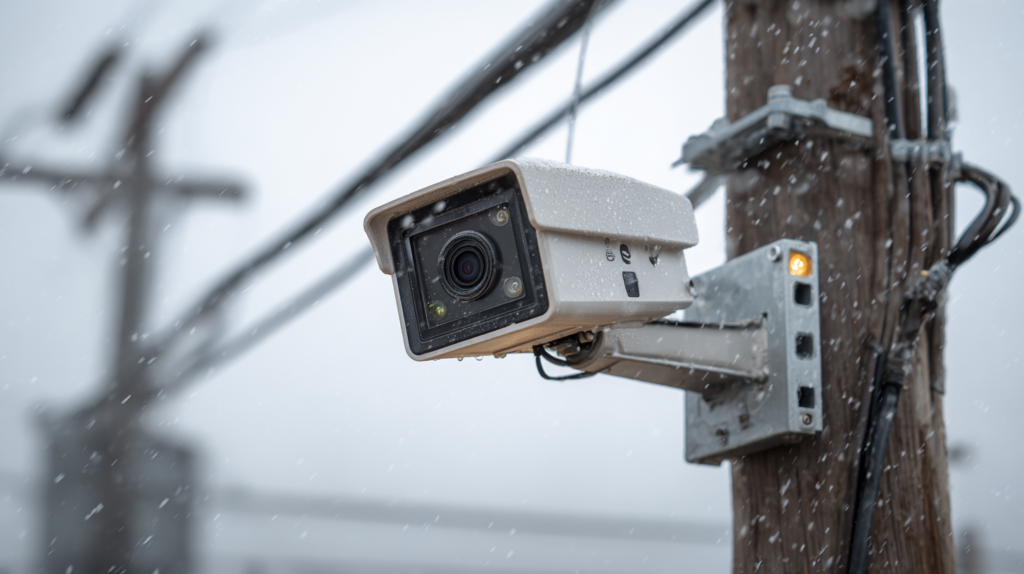

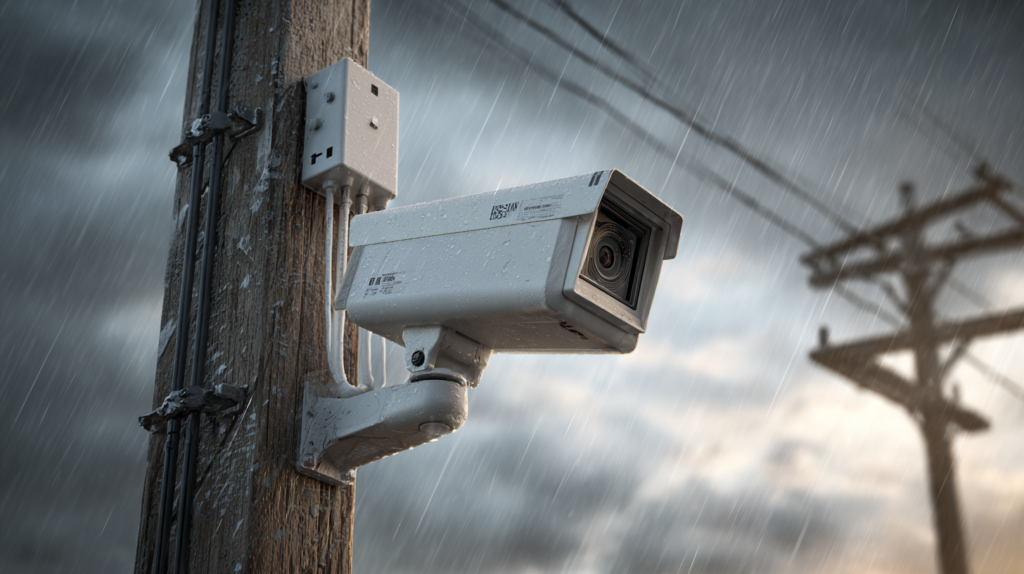

- Pole-mounted enclosures (behind cameras)
- Outdoor junction boxes at mid-span cable breaks
- Control cabinets where fiber or media converters are installed
With flexible installation, midspans reduce the need for costly PoE switch upgrades or separate AC wiring to camera locations.
Top Features
- Wall, pole, or DIN-rail mounting options
- AC or DC input (wide voltage ranges like 90–264 VAC or 48–57 VDC)
- LED status indicators for power and link
Top Benefits
- Enables cost-effective PoE upgrades to legacy sites
- Reduces dependency on full rack-level network upgrades
- Increases network modularity and ease of maintenance
Best Practices
- Label midspans clearly to identify PoE class and type
- Monitor injector health via SNMP if supported
- Mount away from direct sun and ensure passive airflow
Midspans are your flexible power ally—solving PoE delivery problems at the last mile.
How Phihong USA Supports Outdoor 802.3bt PoE Injector Deployments
Phihong USA is a trusted supplier of rugged, industrial-grade 802.3bt midspans engineered for smart city, security, and edge-AI applications. Our solutions offer:
- 60–100 W midspans with 802.3bt Type 3/4 output
- IP65/IP67-rated outdoor injectors with surge protection
- Universal AC input and extended temperature tolerance
- Passive cooling and isolated grounding design
- Compliance with IEEE 802.3bt, IEC 61000-4, CE, UL, and FCC
We support OEMs and integrators looking to:
- Retrofit legacy camera systems with high-wattage PoE
- Power outdoor AI devices where switches fall short
- Deploy reliable, field-ready power infrastructure for edge applications
Contact sales@phihongusa.com or visit www.phihong.com to discuss your custom outdoor PoE deployment needs.
Contact Our Team Today!
Our dedicated sales team and international partners are prepared to support you with your latest projects and initiatives globally.
Explore More with Phihong USA
As we conclude our exploration of PoE technology, it’s evident how these innovations are streamlining power and data integration across various industries. Phihong USA stands at the forefront of this technological advancement, offering a diverse range of power solutions designed to meet the evolving needs of modern industries.
Phihong USA’s extensive product lineup includes:
- Power over Ethernet (PoE) Solutions: Delivering reliable power and data transmission over a single cable, ideal for simplifying network installations and reducing costs.
- AC/DC Adapters and Power Supplies: From compact adapters to industrial-grade power supplies, Phihong provides solutions that ensure efficiency and reliability in various applications.
- Battery Chargers: Customizable chargers for lithium-ion and lead-acid batteries, supporting a wide range of power requirements for mobility and industrial applications.
- Medical Power Supplies: Specialized power solutions designed to meet the stringent requirements of the healthcare industry, ensuring safety and reliability.
Phihong USA is committed to innovation and excellence, continually developing products that meet the highest standards of performance and reliability. Their global reach and dedication to customer support make them a trusted partner in powering the future.
Here are some useful links to explore Phihong USA’s offerings further and bring in new potential clients:
Visit Phihong USA to discover how their advanced power solutions can support your business needs. Whether you’re looking to upgrade your network, or find reliable power supplies, Phihong USA has you covered.
By choosing Phihong USA, you’re partnering with a leader in power technology, ensuring your operations run smoothly and efficiently with top-tier power solutions. Contact Us today!
FAQ
What is 802.3bt and how is it different from older PoE standards?
802.3bt is the latest IEEE Power over Ethernet (PoE) standard, introduced to deliver higher power levels over standard Ethernet cables. Unlike its predecessors—802.3af (15.4 W) and 802.3at (30 W)—802.3bt supports:
- Up to 60 W (Type 3)
- Up to 100 W (Type 4)
- Full four-pair power delivery (4PPoE)
This makes it ideal for next-generation devices such as:
- Edge AI cameras
- Panoramic multi-sensor units
- High-wattage wireless access points
- Smart lighting and AV panels
Another key advancement is Class 5–8 PoE classification, which enables dynamic power negotiation and better energy efficiency. Additionally, 802.3bt mandates lower standby power consumption, helping save energy during idle periods.
For rugged and outdoor deployments, 802.3bt ensures that complex devices get consistent power even at extended distances. It also allows backward compatibility with earlier PoE standards, making it flexible for mixed infrastructure.
In sum, 802.3bt enables higher-power, more intelligent, and scalable PoE delivery for today’s demanding edge applications.
What makes a PoE midspan rugged and weatherproof?
A rugged PoE midspan is designed to operate reliably in harsh outdoor or industrial environments where temperature extremes, moisture, dust, and electrical disturbances are common. Ruggedization typically includes:
- IP65 or IP67 waterproof enclosures
- Wide operating temperatures (-40C to +75°C)
- Surge protection for data and power lines (6 kV or more)
- ESD immunity, lightning tolerance, and vibration resistance
Unlike indoor PoE injectors, rugged midspans are passively cooled and feature fully sealed designs with die-cast or reinforced plastic housings. They are also equipped with sealed cable glands or weatherproof RJ45 ports to protect internal circuits from corrosion or ingress.
Compliance with standards like IEC 60068, IEC 61000-4, and UL 60950-22 ensures the product is validated for field conditions. Rugged midspans are often installed in junction boxes, traffic control cabinets, or pole-mounted enclosures, where reliability is mission-critical.
If your project involves smart cities, outdoor surveillance, or industrial automation, rugged midspans are an essential part of your power and data backbone.
How do I calculate PoE power requirements for edge AI cameras?
Calculating power for edge AI cameras involves reviewing both the device’s datasheet and understanding real-world use cases. Here’s what you need to look at:
- Rated power draw (W): Typically shown under “Power Consumption” in the spec sheet. AI-enabled devices can exceed 25–60 W.
- Peak power usage: Some cameras require more power during boot or inference tasks. Account for this headroom (10–20%)
- PoE class compatibility:
- Class 3: up to 15.4 W (802.3af)
- Class 4: up to 30 W (802.3at)
- Class 5–8: up to 60–100 W (802.3bt)
If your camera is Class 6 or higher, you’ll need an 802.3bt injector. You should also confirm that cable lengths won’t cause voltage drop—especially for runs over 100 meters.
Finally, factor in whether accessories like IR LEDs, motors, or storage modules draw additional power. When in doubt, select a PoE injector with at least 20% headroom beyond the camera’s rated demand.
Why choose a midspan injector instead of a PoE switch?
While PoE switches integrate both network and power functionality, midspan injectors offer unique advantages in many edge deployments:
- Retrofit-friendly: Midspans are ideal when existing network switches lack PoE capabilities. No need to rip and replace.
- Power upgrade: Easily add 60–100 W PoE to a non-PoE port, enabling high-wattage devices like edge-AI cameras or Wi-Fi 6 APs.
- Network flexibility: Midspans can be installed anywhere along the line—close to the device, in a control cabinet, or in a weatherproof box.
They also isolate power sourcing from switching infrastructure, simplifying fault diagnosis and maintenance. And in mission-critical environments, separating power from switching can prevent single points of failure.
Phihong’s rugged midspans are particularly useful in utility poles, transportation hubs, and smart city infrastructure, where decentralized power sourcing offers more scalable and resilient network design.
How can Phihong help with outdoor AI camera power deployment?
Phihong USA offers industry-proven 802.3bt PoE midspans tailored for rugged, outdoor environments and high-wattage AI camera networks. We support OEMs, system integrators, and infrastructure partners with:
- Outdoor PoE injectors (up to 100 W) for edge devices
- IP65/IP67-rated enclosures with lightning and surge protection
- Custom mounting kits for pole, wall, or junction box installations
- Thermal validation and passive cooling for extreme climates
- Regulatory compliance with IEEE, CE, UL, FCC, and IEC standards
We also offer:
- Bulk or OEM packaging
- ODM customization for surveillance and smart city rollouts
- Application engineering support for edge-AI, 5G, and industrial control
Our midspans are currently deployed in cities, campuses, and factories worldwide, enabling scalable and reliable AI infrastructure. Contact us at sales@phihongusa.com or www.phihong.com to get started.
